FusionDock Ultra
Powered by our exclusive Dual-Chip architecture, Quad 6K displays support, and 10Gb Ethernet. Overkill is an understatement.
FusionDock Ultra
Powered by our exclusive Dual-Chip architecture,
Quad 6K displays support, and 10Gb Ethernet. Overkill is an understatement.
A Canvas as Vast as Your Vision.
Your creativity shouldn't be confined to a single frame. With a groundbreaking dual-chip architecture, FusionDock Ultra can drive four 6K displays simultaneously while other docks choke on two screens. Keep your timeline, your assets, your code, and your render preview all in plain sight. Expand your horizon. See the full picture.
*Display support varies by Mac model and chip. This dock works natively and does not bypass Apple’s display limitations.

Peak Performance. Indefinitely.
Push your creative limits; we’ll handle the heat. Driven by an intelligent chip that actively monitors thermal load, the adaptive twin-fan cooling system works in harmony with a floating alloy chassis to obliterate heat buildup. While other docks throttle speeds when they get hot, the FusionDock Ultra maintains peak performance even under the most punishing, long-duration workloads.

Powerful Cooling. Subtle Presence.
We prioritize system stability with an adaptive dual-fan system. The 44-46dB rating reflects testing at just 1 cm in a controlled silent room. In real-world use, sound drops significantly over distance—becoming a subtle presence easily masked by your AC or home office background.
*For recording studios or workflows requiring absolute silence, check out the fanless [FusionDock Max 1 >].

10Gb Ethernet.
Move Mountains. Instantly.
For those who work with massive datasets, speed is oxygen. The built-in 10Gb Ethernet port ensures your connection to the NAS/server is as fluid as your local drive. Collaborate, upload, and render without bottlenecks. Heavy lifting has never felt this weightless.

120Gbps Flow State. Uninterrupted.
Waiting is the enemy of inspiration. With up to 120Gbps of bandwidth—triple the speed of Thunderbolt 4—latency becomes a memory. Whether you’re training AI models or scrubbing through 8K RAW footage, the data flows instantly. Don't let the hardware hold you back. Create at the speed of thought.

Never Out of Ports Again.
Orchestrate your entire workflow from a single command center. With 26 professional-grade ports, every tool in your arsenal is live and ready. From synthesizers to capture cards, SSDs to monitors—connect it all. No dongles, no swapping, no compromises. One cable to rule your masterpiece.

140W of Pure Adrenaline.
Heavy rendering? Complex compiling? Your MacBook stays hungry. While the 140W uplink keeps your MacBook Pro in peak condition, a dedicated 45W USB-C PD port rapidly charges your iPad Pro, iPhone, or secondary device. It guarantees full batteries even under the most punishing workloads.

Mac Compatibility
1. The FusionDock Ultra is NOT compatible with Windows PC, Chromebook, or Intel-based MacBooks.
2. The FusionDock Ultra is compatible with Mac Studio and Mac mini via the included detachable magnetic dual USB‑C cable.
A Canvas as Vast as Your Vision.
Your creativity shouldn't be confined to a single frame. With a groundbreaking dual-chip architecture, FusionDock Ultra can drive four 6K displays simultaneously while other docks choke on two screens. Keep your timeline, your assets, your code, and your render preview all in plain sight. Expand your horizon. See the full picture.
*Display support varies by Mac model and chip. This dock works natively and does not bypass Apple’s display limitations.

Peak Performance. Indefinitely.
Push your creative limits; we’ll handle the heat. Driven by an intelligent chip that actively monitors thermal load, the adaptive twin-fan cooling system works in harmony with a floating alloy chassis to obliterate heat buildup. While other docks throttle speeds when they get hot, the FusionDock Ultra maintains peak performance even under the most punishing, long-duration workloads.

Powerful Cooling. Subtle Presence.
We prioritize system stability with an adaptive dual-fan system. The 44-46dB rating reflects testing at just 1 cm in a controlled silent room. In real-world use, sound drops significantly over distance—becoming a subtle presence easily masked by your AC or home office background.
*For recording studios or workflows requiring absolute silence, check out the fanless [FusionDock Max 1 >].

10Gb Ethernet. Move Mountains. Instantly.
For those who work with massive datasets, speed is oxygen. The built-in 10Gb Ethernet port ensures your connection to the NAS/server is as fluid as your local drive. Collaborate, upload, and render without bottlenecks. Heavy lifting has never felt this weightless.

120Gbps Flow State. Uninterrupted.
Waiting is the enemy of inspiration. With up to 120Gbps of bandwidth—triple the speed of Thunderbolt 4—latency becomes a memory. Whether you’re training AI models or scrubbing through 8K RAW footage, the data flows instantly. Don't let the hardware hold you back. Create at the speed of thought.

Never Out of Ports Again.
Orchestrate your entire workflow from a single command center. With 26 professional-grade ports, every tool in your arsenal is live and ready. From synthesizers to capture cards, SSDs to monitors—connect it all. No dongles, no swapping, no compromises. One cable to rule your masterpiece.

140W of Pure Adrenaline.
Heavy rendering? Complex compiling? Your MacBook stays hungry. While the 140W uplink keeps your MacBook Pro in peak condition, a dedicated 45W USB-C PD port rapidly charges your iPad Pro, iPhone, or secondary device. It guarantees full batteries even under the most punishing workloads.

Mac Compatibility
- FAQs
- Specs
What kind of dock is FusionDock Ultra, and what Macs is it built for?
FusionDock Ultra is a next-generation, high-bandwidth USB-C dock designed specifically for Apple Silicon Macs. Using a dual-USB-C connection and a dual-chip architecture, it delivers what often takes two docks: up to four external displays, 26-port pro-grade connectivity, and 140W high-power charging.
On compatible Macs and cables, it can take advantage of the latest USB-C signaling options — up to 80Gbps bi-directional bandwidth, and up to 120Gbps in the display-heavy direction when operating asymmetrically — giving you more headroom for high-resolution, high-refresh multi-monitor setups while keeping fast storage and networking responsive.
For the best experience, pair it with Macs that support USB 4 up to 120Gb/s (for example, 14-inch MacBook Pro with M4 Pro/M4 Max, 2024).
Will FusionDock Ultra work with my existing USB-C and USB devices?
Yes. FusionDock Ultra is built around the USB-C ecosystem, so your existing USB-C and USB-A peripherals—such as SSDs, keyboards, audio interfaces, webcams, hubs, and card readers—will work normally. Devices will simply run at the best speed supported by both the dock port and the peripheral.
For displays, it supports USB-C/DisplayPort/HDMI display connections, so most modern monitors and adapters work as expected.
Important: FusionDock Ultra is engineered as a host dock for Apple Silicon Macs. It isn’t intended to be used as the primary host dock for Intel-based Macs, Windows laptops, or Chromebooks.
Can Fusiondock Ultra increase the number of external displays my MacBook supports?
FusionDock Ultra exposes up to four display outputs and uses a dual-chip architecture to drive them natively, but it cannot override the built-in display limits of your Mac. The maximum number of external displays is still determined by your Mac’s chip and Apple’s display engine limits:
1. Some entry-level Apple Silicon Macs (M1/M2/M3) only support one external display natively.
2. Pro and Max chips can support multiple external displays (up to four on some M-series Max MacBook Pro models), and FusionDock Ultra is designed to take advantage of those capabilities with up to four external monitors from a single dock.
FusionDock Ultra does not use software tricks to bypass Apple’s display limits. If your Mac only supports one external display, this dock will respect that limit.
How many monitors does FusionDock Ultra support on Mac?
On compatible Apple Silicon MacBook Pros (M1 Max / M2 Max / M3 Max / M4 Max) that support four external displays, FusionDock Ultra can drive up to four external monitors (up to four 6K@60Hz displays) depending on your Mac's chip. For the latest M4 Max MacBook Pro, it can even drive dual 8K displays at 60Hz.
For best results, always:
1. Check Apple’s latest “How many displays can be connected to MacBook Pro” documentation for your exact chip.
2. Match the dock’s capabilities with displays that support the desired resolution and refresh rate over USB-C or HDMI.
Does FusionDock Ultra work properly with the LG UltraFine 5K or Samsung ViewFinity S9 5K monitor?
Due to the way these 5K monitors are designed, the LG UltraFine 5K (27MD5KL) and Samsung ViewFinity S9 5K each require the full bandwidth of an entire Thunderbolt bus.
Because of this, FusionDock Ultra support using up to two LG UltraFine 5K monitors or two Samsung ViewFinity S9 5K monitors at the same time.
Here’s how compatibility works:
✔ Using only one LG UltraFine 5K or one Samsung S9 5K (fully supported)
You can connect one of these 5K monitors without any issues.
✔ Using Two LG/Samsung 5K monitors.
A dual-5K setup is supported, but the monitors must be connected in a specific way:
1. Connect one LG/Samsung 5K to either USB-C downstream port (the port marked 80/120Gbps) on the upper row.
2. Connect the other LG/Samsung 5K to either USB-C downstream port on the lower row.
3. When an LG/Samsung 5K monitor is connected to a USB-C downstream port on a given row, the remaining video ports on that same row cannot output video and can only be used for data transfer (e.g., storage devices).
4. This layout ensures proper bandwidth allocation and stable output for a Dual LG/Samsung 5K setup.
✔ Using one 5K monitor + one additional monitor
A mixed setup is supported, but the monitors must be connected in a specific way:
1. Connect the LG UltraFine 5K / Samsung S9 5K to any USB-C downstream port on either the upper row or the lower row.
2. Your second monitor must be connected to a video port on the other row (any available video output on that row).
3. The two monitors cannot be connected to video outputs on the same row.
4. This layout ensures proper bandwidth allocation and stable output for both displays.
✘ Unsupported setups
• Triple/Quad LG UltraFine 5K setup
• Triple/Quad Samsung ViewFinity S9 5K Setup
If your workflow requires a multi-5K-monitor setup, we recommend using one LG/Samsung 5K monitor + other supported displays, or using Apple Studio Displays for the most stable multi-display performance.
Does FusionDock Ultra rely on DisplayLink or special drivers to get triple displays on Mac?
No. FusionDock Ultra is a native USB-C MacBook dock. It combines dual 80/120Gbps USB-C controllers for quad display support and 26-port connectivity. No DisplayLink or third-party drivers is needed.
On macOS, setup is plug-and-play: connect the dock, plug in your displays, and configure their layout in System Settings → Displays. No DisplayLink software or screen-recording permissions are required.
Which Mac models are compatible with FusionDock Ultra?
FusionDock Ultra is designed for Apple Silicon Macs only and requires macOS 15.1 or later.
Supported hosts include:
• Apple Silicon MacBook Pro and MacBook Air with USB-C ports
• Mac Studio and Mac mini via the included detachable dual USB-C cable
Not supported as host machines:
• Intel-based MacBook Pro / MacBook Air
• Windows laptops
• ChromeOS devices
If you’re unsure about your Mac model, check Apple’s “Identify your MacBook Pro model” pages, then compare its display capabilities with the dock’s triple-display and bandwidth features.
How do I connect the magnetic Dual-Link Cable to my Mac mini or Mac Studio?
It is quite simple. Our new magnetic design allows you to split the two USB-C connectors effortlessly to match the port layout of your desktop Mac.
However, before you plug in, please check your specific Mac model below to ensure the correct setup:
⚠️ Important Compatibility Note:
Please ensure your device is equipped with an Apple Silicon (M-Series) chip.
We DO NOT recommend using the FusionDock Ultra with Intel-based Mac mini models, as they are not compatible with our dual-chip architecture.
Connection Guide by Model:
• Mac mini (M1 / M2 Basic Models):
These models have exactly two Thunderbolt ports on the back. Simply separate the magnetic connectors and plug them into both ports.
• Mac mini (M2 Pro):
This model features four Thunderbolt ports. You can plug the two connectors into any two of them.
• Mac mini (M4):
This model comes with three Thunderbolt ports. You can choose any two of the three ports to connect.
• Mac Studio (Any Model):
You will find four Thunderbolt ports on the rear of the device. Just separate the connectors and plug them into any two of these rear ports.
Can I charge my 16-inch MacBook Pro with FusionDock Ultra?
Absolutely. The FusionDock Ultra provides 140W Power Delivery (PD 3.1) via the upstream port. Unlike older docks that cap at 96W, this dock supports full-speed fast charging for the 16-inch MacBook Pro, eliminating the need to plug in your original MagSafe charger.
Do I need a special cable for FusionDock Ultra, and is one included?
FusionDock Ultra includes both:
• A 1.2 m USB-C 80/120Gbps cable for maximum bandwidth between your MacBook and the dock, and
• A 1.2 m dual USB-C cable for connecting your MacBook, Mac Studio or Mac mini.

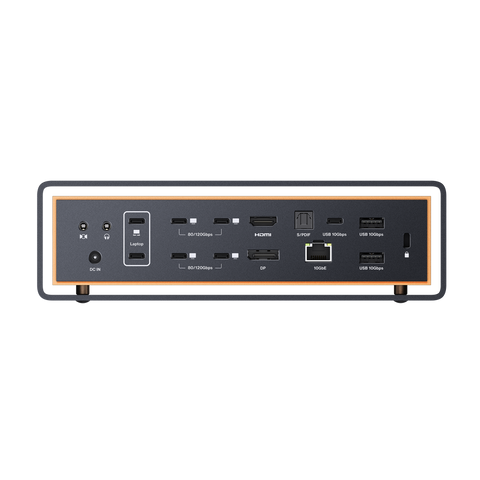

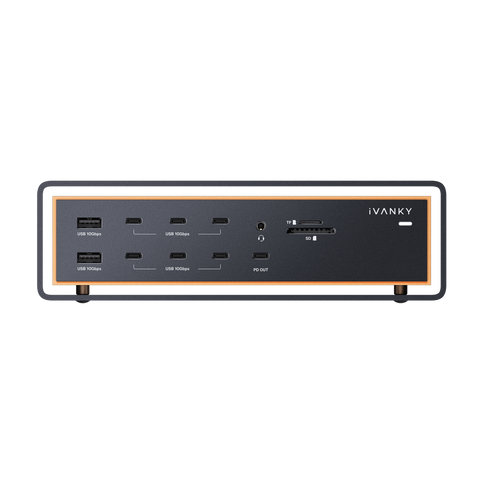

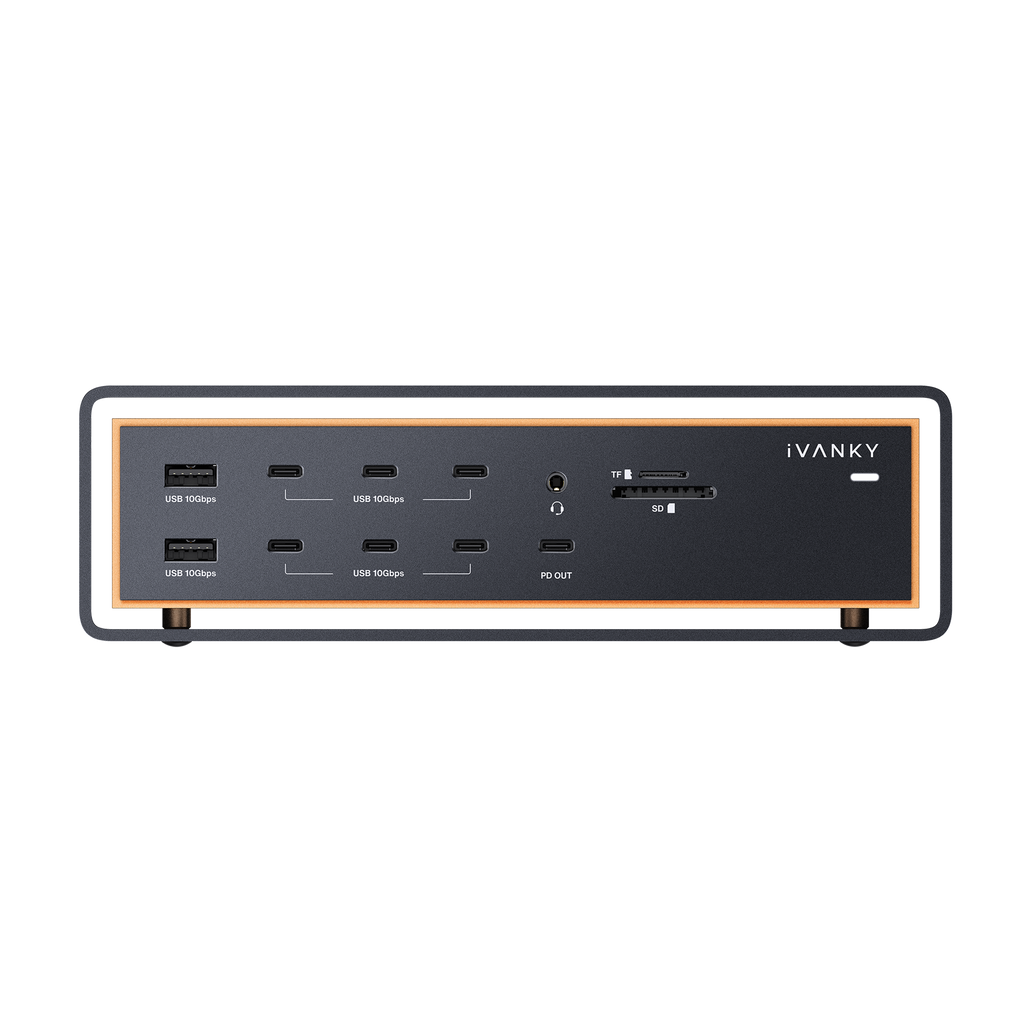

Interface
2 x USB-C (80/120Gbps) Host Ports
4 x USB-C Downstream Ports (80/120Gbps)
1 x USB-C (10Gbps, 45W PD)
7 x USB-C (10Gbps)
4 x USB-A (10Gbps)
1 x DisplayPort 2.1
1 x HDMI 2.0
1 x SD 4.0 (UHS-II)
1 x microSD 4.0 (UHS-II)
1 x 10 Gb Ethernet
1 x Front Audio In/Out (3.5mm)
1 x Rear Audio in (3.5mm)
1 x Rear Audio Out (3.5mm)
1 x Optical Audio
1 x DC In
1 x Security Slot
Power Delivery
Upstream USB-C: Up to 140W
Each Downstream USB-C: 15W
Front PD USB-C Port: 45W
Remaining USB-C Ports: 7.5W
USB-A Ports: 7.5W
In The Box
1 x FusionDock Ultra
1 x Dual USB-C Cable (1.2m)
1 x Thunderbolt 5 Cable (1.2m)
1 x Power Cord
1 x Power Adapter (240W)
1 x User Manual
1 x Quick Start Guide
1 x FAQs
System Requirements
macOS 15.1 or later
Warranty
24 months
